    Rotor type NB remote water meter

    Features

    This water meter is based on a rotary-wing dry multi-flow meter, and has a smart remote water meter with two display modes: mechanical and electronic. Built-in NB IoT chip, which uses many proprietary intellectual property rights such as “patent ball valve technology” and “anti-magnetic patent technology”, which has the advantages of convenient installation, accurate measurement and reliable performance. It is a water company. The ideal IoT water meter product for water management departments such as real estate property companies.

    一、Technical characteristics:

    • The base table complies with the national standard GB/T778-2007 "Drinking cold water meter and hot water meter"

    • All technical indicators are in line with CJ/T 224-2006 "Electronic Remote Water Meter" standard

    • "Patent ball valve", "anti-magnetic patent" and other patented technologies, is the preferred charge management measuring instrument of the water company

    • Using a dry base meter, the NB-IOT wireless intelligent control module and chip are fixed on the internal circuit board of the water meter.

    • Table valve integrated design, the valve can be added in the table, support remote control valve, superior performance

    • Micro-power design, built-in high-capacity lithium battery, to ensure the normal use of water meters for more than 6 years

    • Anti-freezing function: The whole table uses patented technology to improve anti-icing performance within -8 °C

    • Timed reading function: regularly report water consumption data every day through the NB-IOT platform network

    • Battery voltage reading function: periodically report battery voltage data through the NB-IOT platform network

    • Support ladder water price, support prepaid, postpaid


    Rotor type NB remote water meter

    Parameters & installation

    model

    Nominal caliber

    Common traffic

    Flow ratio

    parameter

    Accuracy

    LXSY-15D

    DN15 mm

    2.5m3/h

    Q3/Q1=100、80、63、50

    Q2/Q1=1.6

    Temperature class: T30 Pressure class: MAP10 Pressure loss level: △p63

    Upstream flow field sensitivity level: U10 Downstream flow field sensitivity level: D5

    Unmeasurable reverse flow Climate and mechanical environment rating: B Electromagnetic environment rating: E1

    2level

    LXSY-20D

    DN20 mm

    4.0m3/h

    LXSY-25D

    DN25 mm

    4.0m3/h

    Maximum allowable error: Under the rated working condition of water temperature, the low zone (Q1 ≤ Q < Q2) is ± 5%; the high zone (Q2 ≤ Q ≤ Q4), the water temperature ≤ 30 °C is ± 2%, and the water temperature is > 30 ° C ±3%.

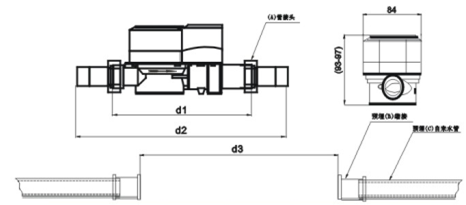

    Nominal caliber

    d1

    d2

    d3

    A

    B

    C

    DN15

    165

    258

    238

    1/2

    1/2

    1/2

    DN20

    195

    299

    279

    3/4

    3/4

    3/4

    DN25

    225

    345

    325

    1

    1

    1
